品牌：藍江/LAND
材料：尼龍6
顏色：默認黑色，可選灰白色
阻燃：UL94V-2(可定制V0)
溫度：-40°C-105°C
環保：符合ROHS2.0標準
性能：90度弧形彎角設計，穿線方便，鎖管便捷

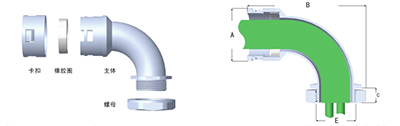

藍江產品型號 | 螺紋規格 | 適配軟管 | 產品尺寸 | |||||
Product model | Thread size | Adapt hose | Product size | |||||
PN. | Metric | φ mm | I.D. | A | B | C | D | E |
RKHW-M10-AD10.0 | M10×1.5 | AD10 | 7 | 17.5 | 46 | 8 | 17 | 10 |
RKHW-M12-AD13.0 | M12×1.5 | AD10 | 9 | 20.5 | 53.3 | 10.2 | 19 | 12 |
RKHW-M16-AD15.8 | M16×1.5 | AD15.8 | 13 | 23 | 60 | 10.3 | 22.5 | 16 |
RKHW-M20-AD18.5 | M20×1.5 | AD18.5 | 16.5 | 28 | 70 | 12.2 | 26 | 20 |
RKHW-M20-AD21.2 | M20×1.5 | AD21.2 | 15.3 | 30 | 72 | 12 | 26.2 | 20 |
RKHW-M25-AD25.0 | M25×1.5 | AD25 | 21 | 34 | 82 | 12.2 | 28 | 25 |
RKHW-M25-AD28.5 | M25×1.5 | AD28.5 | 21 | 37 | 81 | 12.3 | 29.9 | 25 |
RKHW-M32-AD34.5 | M32×1.5 | AD34.5 | 28 | 44 | 95 | 14.9 | 37.2 | 32 |
RKHW-M40-AD42.5 | M40×1.5 | AD42.5 | 35.2 | 53 | 107.5 | 12.2 | 41.8 | 40 |
RKHW-M50-AD54.5 | M50×1.5 | AD54.5 | 44.5 | 66.5 | 120 | 14.7 | 46.1 | 50 |
RKHW-PG7-AD10.0 | PG7 | AD10 | 7.5 | 17.5 | 46 | 8 | 16.5 | 12.3 |
RKHW-PG9-AD13.0 | PG9 | AD13 | 11 | 20.5 | 56 | 10.2 | 18.8 | 15 |
RKHW-PG11-AD15.8 | PG11 | AD15.8 | 13.5 | 23 | 60.5 | 10.2 | 22.6 | 18.6 |
RKHW-PG13.5-AD18.5 | PG13.5 | AD18.5 | 16.5 | 28 | 70 | 12 | 25.7 | 20.4 |
RKHW-PG16-AD21.2 | PG16 | AD21.2 | 17.5 | 30 | 73.5 | 12 | 26 | 22.5 |
RKHW-PG21-AD25.0 | PG21 | AD25.0 | 21.5 | 34 | 82 | 12 | 28.5 | 28.3 |
RKHW-PG21-AD28.5 | PG21 | AD28.5 | 23 | 37 | 82 | 12.2 | 27.8 | 28.3 |
RKHW-PG29-AD34.5 | PG29 | AD34.5 | 30.5 | 44 | 96.5 | 12 | 36.5 | 37 |
RKHW-PG36-AD42.5 | PG36 | AD42.5 | 37.5 | 531 | 110 | 12 | 41.7 | 47.3 |
RKHW-PG48-AD54.5 | PG48 | AD54.5 | 48.5 | 66.5 | 126 | 14.5 | 46 | 59.3 |
