品牌：藍江/LAND
材料：黃銅鍍鎳
性能：外形美觀，螺紋精密，耐腐蝕，耐酸堿
作用：為格蘭頭，悶蓋等與設備連接提供鎖緊支持

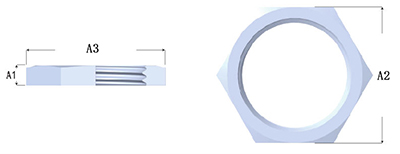

藍江產品型號 | 螺紋規格 | 產品尺寸/Product size | 包裝 | |
Product model | Thread size | 對邊 A2 | 厚度 A1 | packing |
PN. | M/PG/G/NPT | mm | mm | Pcs/bag |
L-M10 | M10×1.5 | 12 | 2.5 | 100 |
L-M12 | M12×1.5 | 15 | 2.8 | 100 |
L-M16 | M16×1.5 | 19 | 2.8 | 100 |
L-M18 | M18×1.5 | 21 | 3 | 100 |
L-M20 | M20×1.5 | 23 | 3 | 100 |
L-M22 | M22×1.5 | 26 | 3 | 100 |
L-M24 | M24×1.5 | 28 | 3.5 | 100 |
L-M25 | M25×1.5 | 30 | 3.5 | 100 |
L-M27 | M27×1.5 | 32 | 4 | 100 |
L-M30 | M30×1.5 | 34 | 4 | 100 |
L-M32 | M32×1.5 | 36 | 4 | 50 |
L-M33 | M33×2.0 | 36 | 4 | 50 |
L-M36 | M36×1.5 | 40 | 4 | 50 |
L-M40 | M40×1.5 | 45 | 5 | 50 |
L-M42 | M42×2.0 | 46 | 5 | 50 |
L-M48 | M48×2.0 | 55 | 5 | 50 |
L-M50 | M50×1.5 | 55 | 5 | 50 |
L-M56 | M56×2.0 | 60 | 5 | 50 |
L-M60 | M60×2.0 | 65 | 5 | 50 |
L-M63 | M63×1.5 | 70 | 6 | 20 |
L-M64 | M64×1.5 | 70 | 6 | 20 |
L-PG7 | PG7 | 15 | 2.8 | 100 |
L-PG9 | PG9 | 18 | 2.8 | 100 |
L-PG11 | PG11 | 21 | 3 | 100 |
L-PG13.5 | PG13.5 | 23 | 3 | 100 |
L-PG16 | PG16 | 26 | 3 | 100 |
L-PG21 | PG21 | 32 | 3.5 | 100 |
L-PG29 | PG29 | 40 | 4 | 100 |
L-PG36 | PG36 | 50 | 5 | 50 |
L-PG42 | PG42 | 60 | 5 | 50 |
L-PG48 | PG48 | 65 | 5.5 | 20 |
L-G1/4 | G1/4 | 15 | 2.8 | 100 |
L-G3/8 | G3/8 | 20 | 3 | 100 |
L-G1/2 | G1/2 | 20 | 4 | 100 |
L-G3/4 | G3/4 | 30 | 4 | 100 |
L-G1 | G1 | 40 | 5 | 100 |
L-G1-1/4 | G1-1/4 | 50 | 5 | 50 |
L-G1-1/2 | G1-1/2 | 55 | 6 | 50 |
L-G2 | G2 | 65 | 6 | 20 |
